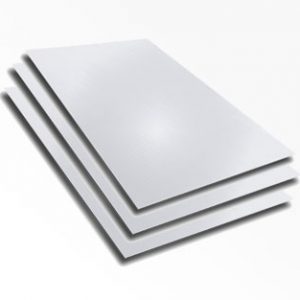

SS 310 / 310S Sheets & Plates

Stainless steel 310 sheets, stainless steel 310S plates, stainless steel 310 coils in thickness of 0.3mm to 120mm. that have found extensive applications in various industries. We also deal in Nickel and copper alloy, Stainless & Duplex Steel, Carbon & Alloy Steel, are the materials which are used for designing of stainless steel sheet, plate and coil.

We also supply make of SAIL / ESSAR / JINDAL / TATA / BHUSHAN/ INDIAN / IMPORTED etc material.

Sr. No. Size (in mm) Thickness Specification Manufacturer
1 1000 x 2000
1220 x 2440
(4′ x 8′)
1250 x 2500
1500 x 3000 To 6000
2000 x 4000 To 6000		 0.3 mm To 120 mm A – 240 Jindal
Sail
Shah Alloys
Imported Etc.
Specifications
Standards Designation
ASTM A 240
ASME SA 240



STANDARD UNS WERKSTOFF NR.
SS 310 S31000 1.4841
SS 310S S31008 1.4845



Composition
Typical compositional ranges for grade 310 stainless steels are given in table 1.
Composition ranges for 310 grade stainless steel Sheets & Plates
Grade
C
Mn
Si
P
S
Cr
Mo
Ni
N
310
min.
max.
–
0.25
–
2.00
–
1.50
–
0.045
–
0.030
24.0
26.0
–
19.0
22.0
–
310S
min.
max.
–
0.08
–
2.00
–
1.50
–
0.045
–
0.030
24.0
26.0
–
19.0
22.0
–



Mechanical Properties
Typical mechanical properties for grade 310 stainless steels are given in table 2.
Mechanical properties of 310 grade stainless steel Plates & Sheets
Grade
Tensile Strength (MPa) min
Yield Strength 0.2% Proof (MPa) min
Elongation (% in 50mm) min
Hardness
Rockwell B (HR B) max
Brinell (HB)
max
310
515
205
40
95
217
310S
515
205
40
95
217
Physical Properties
Typical physical properties for annealed grade 310 stainless steels are given in table 3.

Physical properties of 310 grade stainless steel in the annealed condition
Grade
Density (kg/m3)
Elastic Modulus (GPa)
Mean Coefficient of Thermal Expansion (μm/m/°C)
Thermal Conductivity(W/m.K)
Specific Heat 0-100°C (J/kg.K)
Electrical Resistivity (nΩ.m)
0-100°C
0-315°C
0-538°C
at 100°C
at 500°C
310/S
7750
200
15.9
16.2
17.0
14.2
18.7
500
720
Grade Specification Comparison
Approximate grade comparisons for 310 stainless steels are given in table 4.
Grade specifications for 310 grade stainless steel
Grade
UNS No
Old British
Euronorm
Swedish SS
Japanese JIS
BS
En
No
Name
310
S31000
310S24
–
1.4840
X15CrNi25-20
–
SUH 310
310S
S31008
310S16
–
1.4845
X8CrNi25-21
2361
SUS 310S

These comparisons are approximate only. The list is intended as a comparison of functionally similar materials not as a schedule of contractual equivalents. If exact equivalents are needed original specifications must be consulted.

Possible Alternative Grades
Possible alternative grades to grade 310 stainless steels are given in table 5.
Possible alternative grades to 310 grade stainless steel
Grade Why it might be chosen instead of 310
3CR12 Heat resistance is needed, but only to about 600°C.
304H Heat resistance is needed, but only to about 800°C.
321 Heat resistance is needed, but only to about 900°C. Subsequent aqueous corrosion resistance also required.
253MA (2111HTR) A slightly higher temperature resistance is needed than can be provided by 310. Better resistance to reducing sulphide atmosphere needed. Higher immunity from sigma phase embrittlement is required.

OTHER GRADES OF STAINLESS STEEL 310 / 310S SHEETS PLATES

Stainless Steel 310 Sheets Plates
Stainless Steel 310S Sheets Plates
SS 310 Sheets Plates
SS 310S Sheets Plates
Stainless Steel UNS S31000 Sheets Plates
SS UNS S31008 Sheets Plates
Stainless Steel Din 1.4841 Sheets Plates
SS Din 1.4845 Sheets Plates
